• Exidor 322EC Outside Access Lever HAndle
1 1

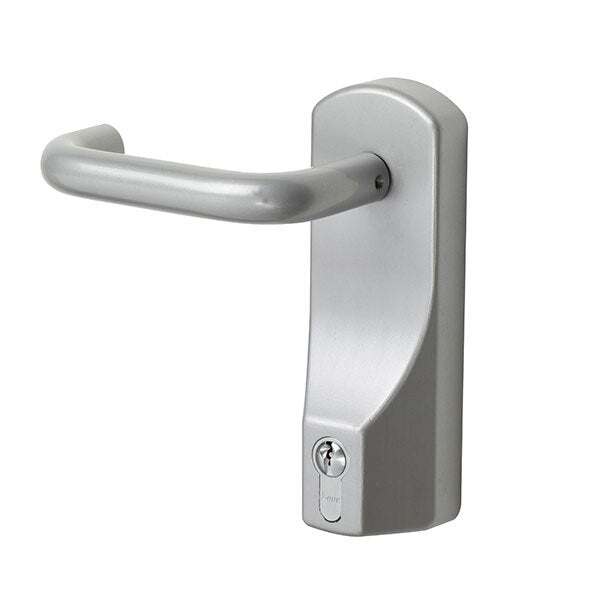

Exidor 322EC Outside Access Lever

Exidor 322EC Outside Access Lever

Suitable for Steel Doors

Unit type: Outside access device - supplied loose

Activation: Lever handle

Door type: Single doorset, Rebated double doorset, active leaf, Plain meeting stile double doorset, either leaf

Door opening: Outward

Projection: 70mm from door face

Mounting method: Surface-mounted

Max door width: 1220mm

Max door mass: Up to 200kg

Operation:
When locked, the lever is fixed in the horizontal position. When unlocked, the lever, spindle and mechanism engage allowing the panic bar to be operated from the outside. The lever remains engaged until the mechanism is re-locked.

Cylinder specification for master keying needs: 40mm single euro profile cylinder, with rear face drill and tap fixing

Finish: SIL or SSE (other finishes on request)

Suitable for use with: 296, 294, 294A, 285, 284, 297, 293, 293A

Accessories: Additional fixings for thicker doors available on request

CE marked: As an approved accessory to the internal hardware

Certified 200/300 Series accessory as part of EN 1125 and EN 179

Suitable for fire doors: Timber FD60, metal FD240

Certifire approval: Yes – as an accessory to the internal hardware
£60.00 GBP
£60.00 GBP
Sale Sold out

Lead Times

Stock door: 3-5 working days

Modified doors 5-10 working days

Powder coated door: 20-25 working days

Delivery

Northern Ireland Full Pallet: £35 + vat, Oversized Pallet £70 + vat

Dublin: Full Pallet £50 + vat, Oversized Pallet £100 + vat

Republic of Ireland: Full Pallet £70 + vat, Oversized Pallet £130 + vat

Great Britain - Call office for price

View full details
