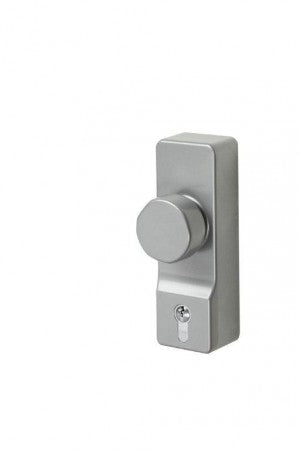

Exidor 302EC Outside Access Knob

Unit type: Outside access device - supplied loose

Activation: Knob handle

Door type: Single doorset, Rebated double doorset, active leaf, Plain meeting stile double doorset, either leaf

Door opening: Outward

Projection: 70mm from door face

Mounting method: Surface-mounted

Max door width: 1220mm

Max door mass: Up to 200kg

Operation: Rotating the knob retracts the internal bolts/latches. Releasing the knob returns the internal bolts/latches to the rest position

Cylinder specification for master keying needs: 40mm single euro profile cylinder, with rear face drill and tap fixing

Finish: SIL or SSE (other finishes on request)

Suitable for use with: 296, 294, 294A, 285, 284, 297, 293, 293A

Accessories: Additional fixings for thicker doors available on request

CE marked: As an approved accessory to the internal hardware

Certified 200/300 Series accessory as part of EN 1125 and EN 179

Suitable for fire doors: Timber FD60, metal FD240

Certifire approval: Yes – as an accessory to the internal hardware
