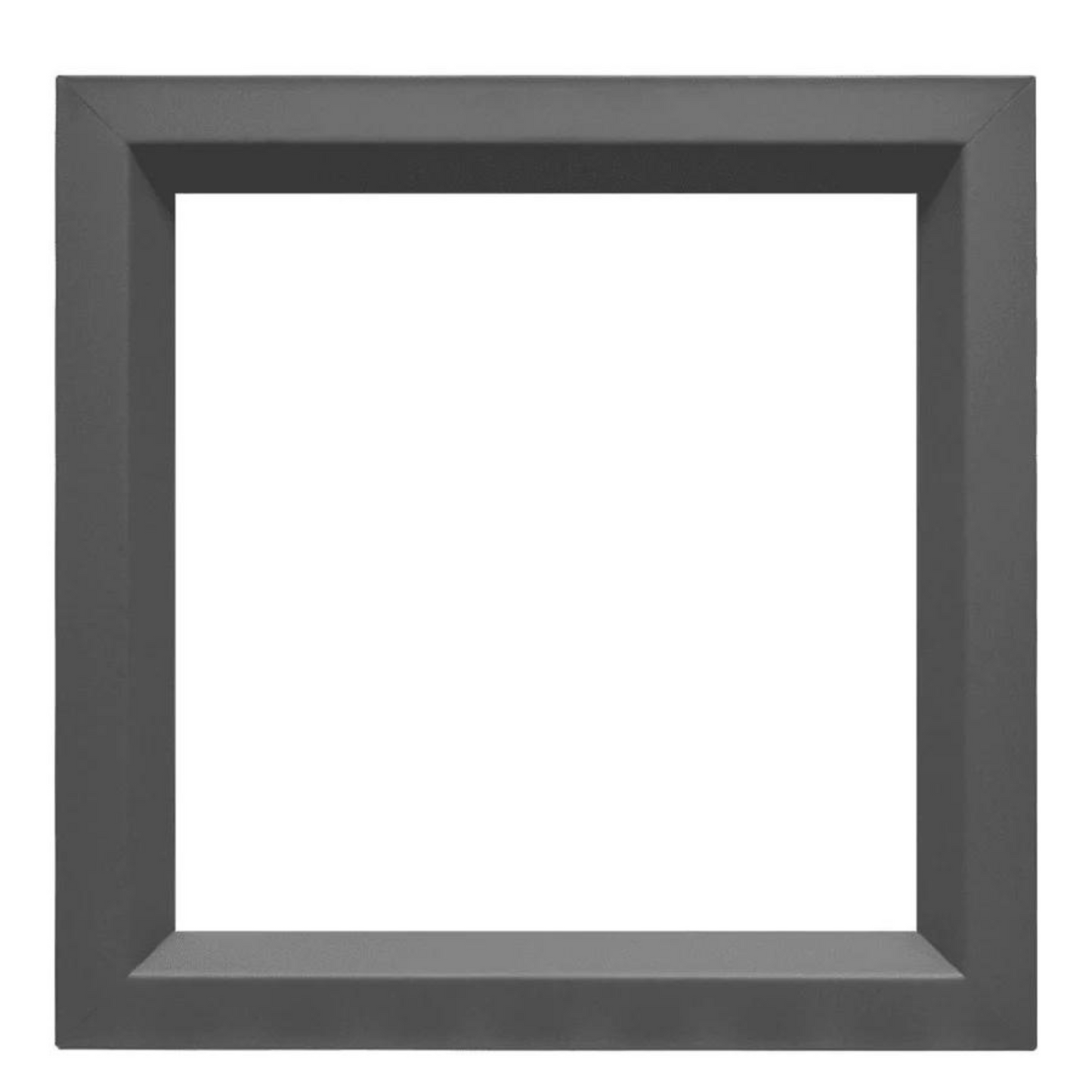

Anemostat Low Profile Metal Vision Panel with Laminated Glass

The LoPro Metal Vision Panel with Laminated Glass is easy to install and provides a low profile, 'flush to the door look'.

Uses 44mm sheet metal screws that pass through the door cut-out and fasten to the opposite side of the vision frame, thus eliminating the need to drill the door for through bolts and saving installation time and labour. It also leaves the corridor side of the frame free of fasteners for added security and a cleaner, more aesthetic appearance.

DOOR THICKNESS
For 44-46mm metal or timber doors.

Cut Size Required - 508 x 508mm (W x H)

Clear Vision - 457 x 457mm (W x H)

Glass Size Required - 481 x 481mm (W x H) (Included)

Benefits of Laminated Glass

• The plastic interlayer holds the structure intact when broken – making it impact-resistant.
• Because the structure is held intact upon impact, this makes it ideal for security
• Increases safety as the shards do not scatter as widely and are instead held in place by the plastic sheet
• Has sound reduction properties and also works to block out a large proportion of UV radiation

For 44-46mm metal or timber doors.
